Product no. X0048
Conical Grips (NG)
Seal and ventilate automotive pipes with the NG range of conical grip caps, designed with ventilation holes for secure and visible protection.
Ideal for these applications:
All benefits
Built-in ventilation
prevents pressure build-up
Easy fit
conical shape adapts to various diameters
Ribbed interior
ensures a firm hold on capping pipes
|
|

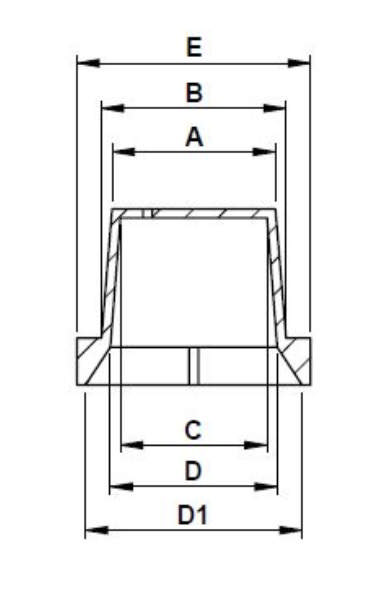

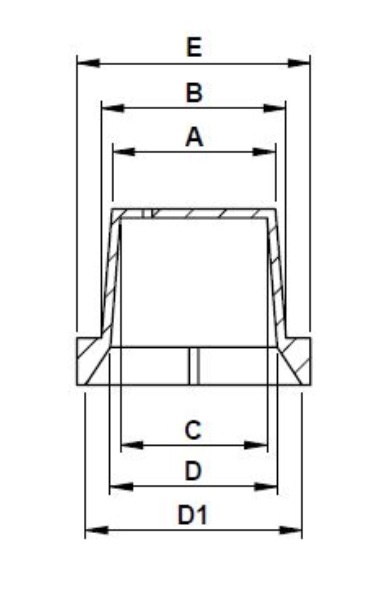

CO2
|
A
mm
|
B
mm
|
C
mm
|
D
mm
|
D1
mm
|
E
mm
|
F
mm
|
G
mm
|
|---|
| NG0125L-AA00B | Red | Recycled LDPE | 0 | 11.2 | 12.5 | 9.5 | 10.6 | 14.6 | 16.6 | 0 | 0 |
|
| NG0158L-AA00B | Red | Recycled LDPE | 0 | 14.4 | 15.8 | 12.8 | 13.9 | 18.7 | 20.4 | 0 | 0 |
|
| NG0200L-AA00B | Red | Recycled LDPE | 0 | 17.7 | 20 | 15.9 | 18.1 | 23.5 | 25.3 | 0 | 0 |
|
| NG0254L-AA00B | Red | Recycled LDPE | 0 | 22.1 | 25.3 | 20.8 | 23.7 | 0 | 32.4 | 20.1 | 5 |
|
