Product no. X0040
Cyl. Caps with Flange (GR)

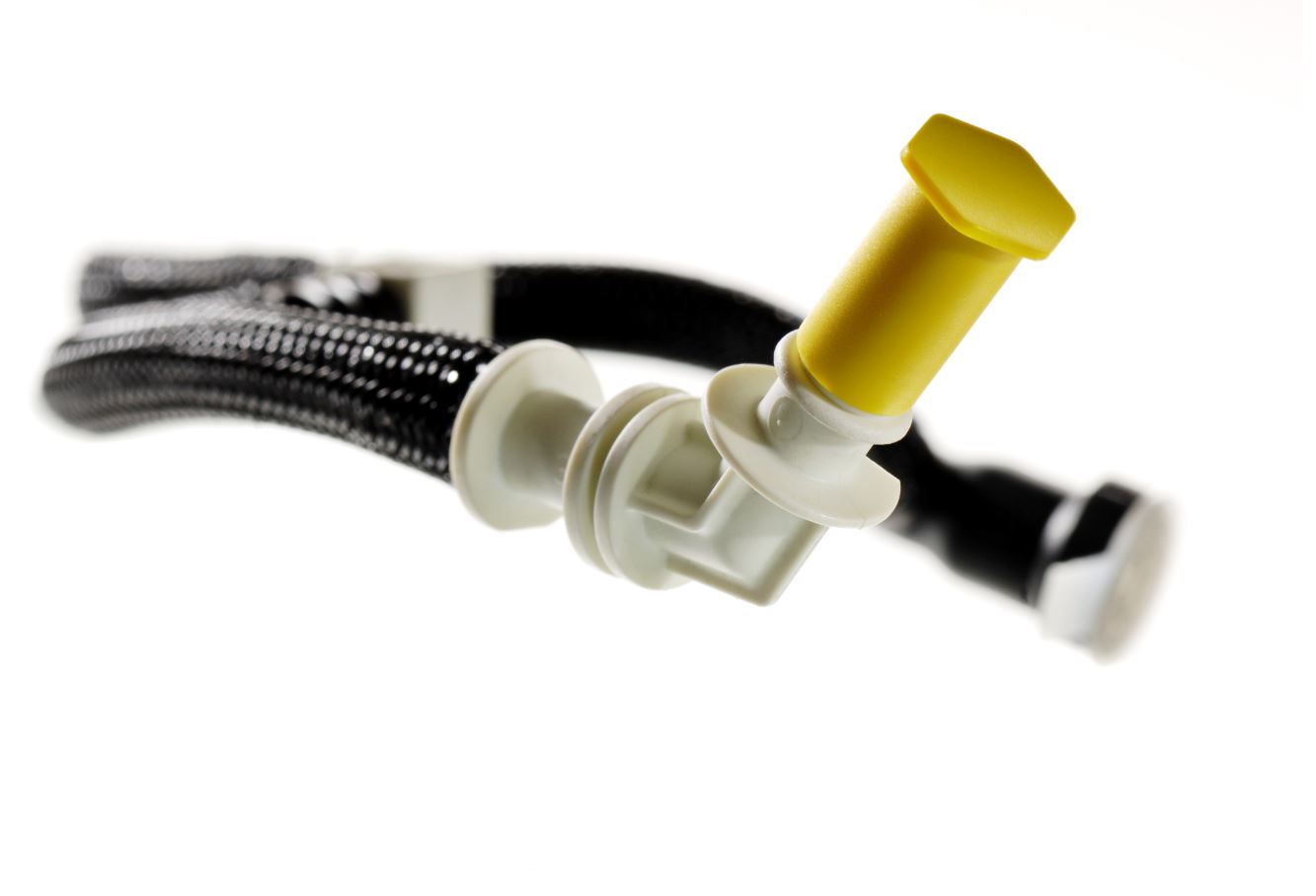

Protective caps with an integrated grip for easy removal and a conical interior for a secure, tight fit. Ideal for male connectors in brake and fuel systems. Selected models comply with SAE J2044 standards.
Ideal for these applications:
All benefits
Easy removal
flange ensures quick pull-off
Tight seal
conical inside for reliable fit
Versatile material options
fit multiple applications
|
|
CO2
|

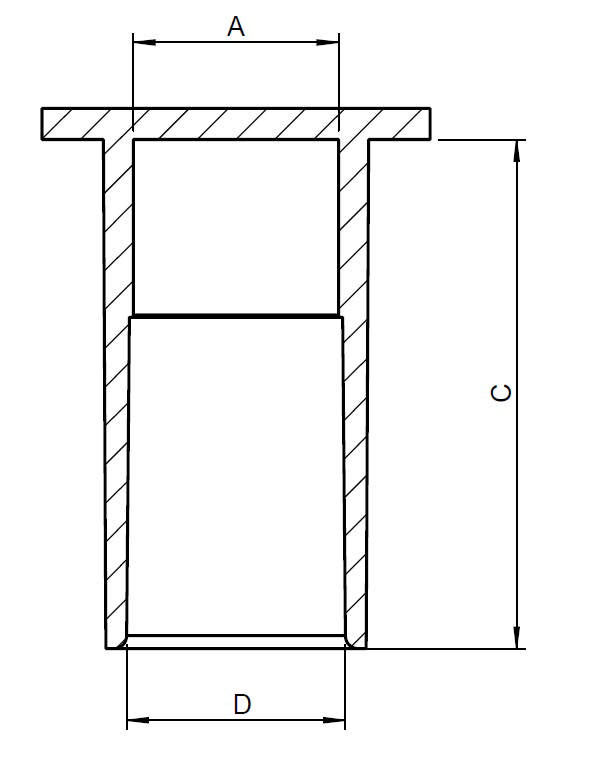

A
mm
|
C
mm
|
D
mm
|
Suitable For Standards
|
|---|
| GR0045A-TD10AX7 | Natural | TPE | 0 | 4.6 | 13.4 | 5.2 | 0 |
|
| GR0045A-TS40A | Black | TPE | 0 | 4.6 | 13.2 | 5.2 | 0 |
|
| GR0062A-AA10A | Natural | Recycled LDPE | 0 | 6.2 | 19.3 | 6.7 | 0 |
|
| GR0062A-AA20A | Yellow | Recycled LDPE | 0 | 6.2 | 19.3 | 6.7 | SAE 1/4" (6.35 mm) |
|
| GR0075A-AA00A | Red | Recycled LDPE | 0 | 6.8 | 9.9 | 7.2 | 0 |
|
| GR0075A-AV10A | Natural | LDPE | 0 | 6.8 | 9.9 | 7.2 | 0 |
|
| GR0078A-AA10A | Natural | Recycled LDPE | 0 | 7.8 | 18.3 | 8.2 | SAE 5/16" (8.0 mm) |
|
| GR0078A-AA20A | Yellow | Recycled LDPE | 0 | 7.8 | 18.3 | 8.2 | 0 |
|
| GR0079A-AA20A | Yellow | Recycled LDPE | 0 | 7.9 | 18.3 | 8.15 | SAE 8.0 |
|
| GR0079B-AA90A | Blue | Recycled LDPE | 0 | 7.9 | 18.3 | 8.15 | SAE 8.0 |
|
| GR0079B-AV10A | Natural | LDPE | 0 | 7.8 | 18.4 | 8.3 | SAE 8.0 |
|
| GR0080A-AA00A | Red | Recycled LDPE | 0 | 7.9 | 19.6 | 8.2 | 0 |
|
| GR0080A-AA20A | Yellow | Recycled LDPE | 0 | 7.9 | 19.6 | 8.2 | SAE 8.0 |
|
| GR0090A-AV10A | Natural | LDPE | 0 | 8 | 16 | 8.9 | 0 |
|
| GR0095A-AA20A | Yellow | Recycled LDPE | 0 | 9.45 | 21.25 | 10 | SAE 3/8" (9.5 mm) |
|
| GR0095A-AV10A | Natural | LDPE | 0 | 9.45 | 21.5 | 10 | 0 |
|
| GR0098A-AA00A | Red | Recycled LDPE | 0 | 9.8 | 20.45 | 10.2 | 0 |
|
| GR0098A-AA20A | Yellow | Recycled LDPE | 0 | 9.8 | 20.45 | 10.2 | SAE 10.0 |
|
| GR0100A-AA00A | Red | Recycled LDPE | 0 | 9.9 | 21.4 | 10.2 | 0 |
|
| GR0100A-AA20A | Yellow | Recycled LDPE | 0 | 9.9 | 21.4 | 10.2 | SAE 10.0 |
|
| GR0100B-AA00A | Red | Recycled LDPE | 0 | 9.9 | 21.4 | 10.2 | SAE 10.0 |
|
| GR0104A-AV10A | Natural | LDPE | 0 | 9.8 | 21.45 | 10.9 | SAE 10.0 |
|
| GR0116A-AV10A | Natural | LDPE | 0 | 11.6 | 20 | 12.2 | SAE 12.0 |
|
| GR0116A-TD10A | Natural | TPE | 0 | 11.6 | 20 | 12.4 | SAE 12.0 |
|
| GR0116B-TD20A | Yellow | TPE | 0 | 11.65 | 12 | 11.65 | 0 |
|
| GR0116V-AV10A | Natural | LDPE | 0 | 11.6 | 20 | 12.2 | SAE 12.0 |
|
| GR0122A-AA10A | Natural | Recycled LDPE | 0 | 12.2 | 24.5 | 12.85 | 0 |
|
| GR0122A-AA20A | Yellow | Recycled LDPE | 0 | 12.2 | 24.5 | 12.85 | SAE 1/2" (12.7 mm) |
|
| GR0125A-AA00A | Red | Recycled LDPE | 0 | 12.5 | 23.7 | 13 | 0 |
|
| GR0125A-AA20A | Yellow | Recycled LDPE | 0 | 12.5 | 23.7 | 13 | SAE 1/2" (12.7 mm) |
|
| GR0130A-AA10A | Natural | Recycled LDPE | 0 | 12.8 | 19.7 | 13.4 | 0 |
|
| GR0130A-AV10A | Natural | LDPE | 0 | 12.8 | 19.7 | 13.4 | 0 |
|
| GR0130B-AA10A | Natural | Recycled LDPE | 0 | 11.8 | 16 | 12.3 | 0 |
|
| GR0146R-AE70B | White | EVA | 0 | 14.6 | 7.5 | 14.7 | 0 |
|
| GR0159A-AA20A | Yellow | Recycled LDPE | 0 | 15.5 | 24.6 | 15.8 | 0 |
|
| GR0159B-AA20A | Yellow | Recycled LDPE | 0 | 15.9 | 25 | 16.54 | 0 |
|
| GR0160A-AA10A | Natural | Recycled LDPE | 0 | 14.5 | 15.9 | 15.6 | 0 |
|
| GR0200A-AV10A | Natural | LDPE | 0 | 18.4 | 19.9 | 19.6 | 0 |
|
| GR0200A-EA20A | Yellow | HDPE | 0 | 18.4 | 19.9 | 19.6 | 0 |
|
| GR0220A-AA90A | Blue | Recycled LDPE | 0 | 22 | 26 | 22.4 | 0 |
|
| GR0220A-AV00A | Red | LDPE | 0 | 22 | 25.5 | 22.4 | 0 |
|
| GR0220A-AV10A | Natural | LDPE | 0 | 22 | 25.5 | 22.4 | 0 |
|
| GR0220A-EA20A | Yellow | HDPE | 0 | 22 | 25.5 | 22.4 | 0 |
|
| GR0220Z-AA00B | Red | Recycled LDPE | 0 | 22 | 18.6 | 22 | 0 |
|
| GR0222A-AA90A | Blue | Recycled LDPE | 0 | 22.2 | 26 | 22.6 | 0 |
|
| GR0280A-AA90AX3 | Blue | Recycled LDPE | 0 | 28.5 | 40.5 | 30.3 | 0 |
|
| GR0474A-AA00A | Red | Recycled LDPE | 0 | 46.3 | 11.4 | 47.5 | 0 |
|
| GR0640A-AA20B | Yellow | Recycled LDPE | 0 | 62 | 33.8 | 63.9 | 0 |
|
