Product no. X0005
Refrigerant Male Connection (AM)
Protect your refrigerant ports and the performance that depends on them. The AM range is designed to safeguard male refrigerant inlets and outlets in NEV thermal management systems. With a focus on preserving O-ring integrity and preventing contamination, these caps help maintain efficient cooling and system reliability.
Ideal for these applications:
All benefits
Clean performance
keeps dust and debris out
O-ring safe
protects O-ring integrity
User-friendly
ergonomic handle for easy removal
|
|
CO2
|

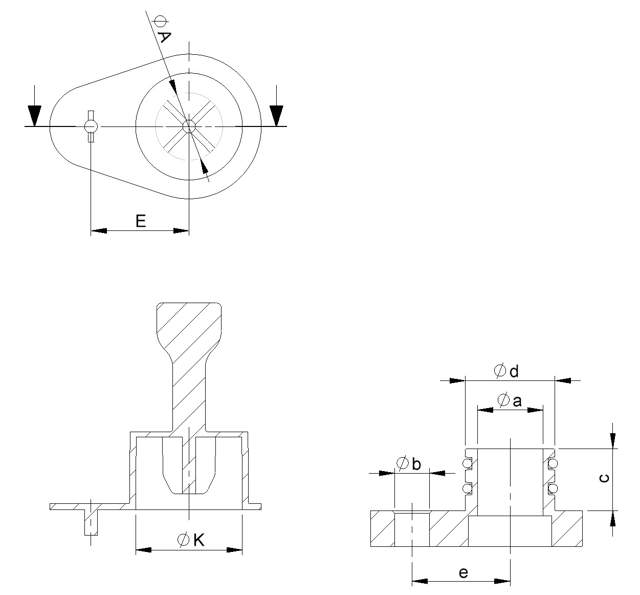

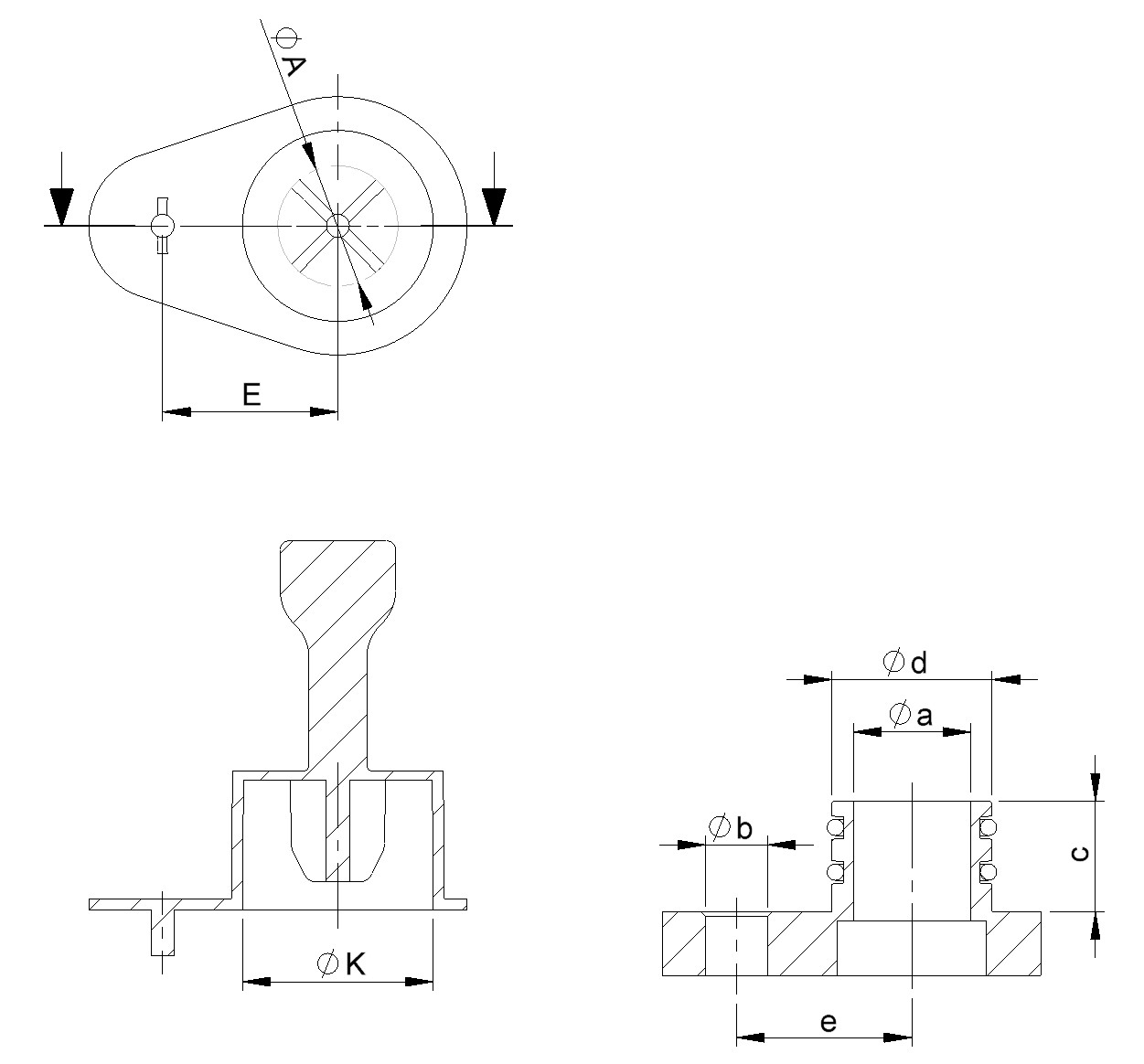

A
mm
|
B
mm
|
C
mm
|
D
mm
|
E
mm
|
F
mm
|
G
mm
|
H
mm
|
Ø A
mm
|
Ø K
mm
|
Application
|
c
mm
|
e
|
Ø a
mm
|
Ø b
mm
|
Ø d
mm
|
|---|
| AM0067A-AA10A | Natural | LDPE | 0 | 6.41 | 6.29 | 11 | 14 | 17 | 36 | 12.5 | 25 | 6.41 | 14.1 | STLA Module 6 | 11.95 | 17.00 | 6.35 | 6.7 | 10.95 |
|
| AM0097A-AA10A | Natural | LDPE | 0 | 9.64 | 6.33 | 11 | 14 | 17 | 36 | 12 | 25 | 9.64 | 17.28 | STLA Module 8 | 11.95 | 17.00 | 9.45 | 6.7 | 14.25 |
|
| AM0130A-AA10A | Natural | LDPE | 0 | 13.05 | 6.1 | 11 | 14 | 19 | 41 | 0 | 0 | 13.05 | 20.54 | STLA Module 10 | 11.95 | 19 | 12.7 | 6.7 | 17.35 |
|
| AM0161A-AA10A | Natural | LDPE | 0 | 16.16 | 6.32 | 11 | 14 | 19 | 41 | 12.5 | 25 | 16.16 | 23.69 | STLA Module 12 | 11.95 | 19.00 | 15.8 | 6.7 | 20.55 |
|
