Product no. X0024

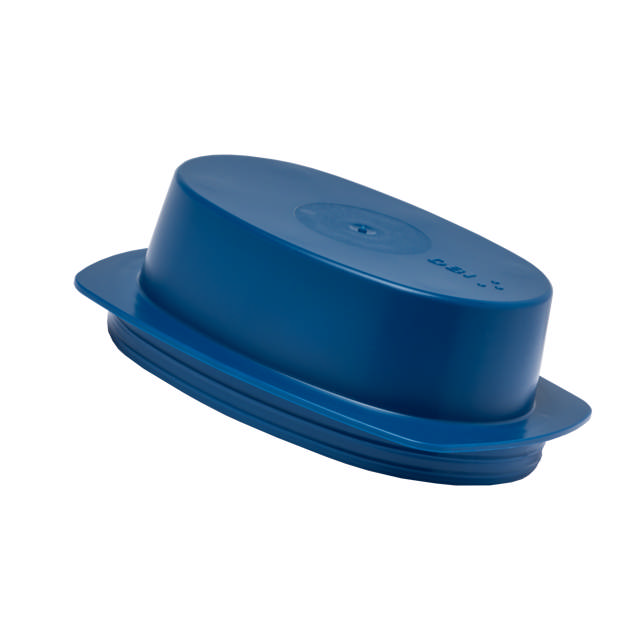

HV Solution for Rosenberger Connectors (EH)

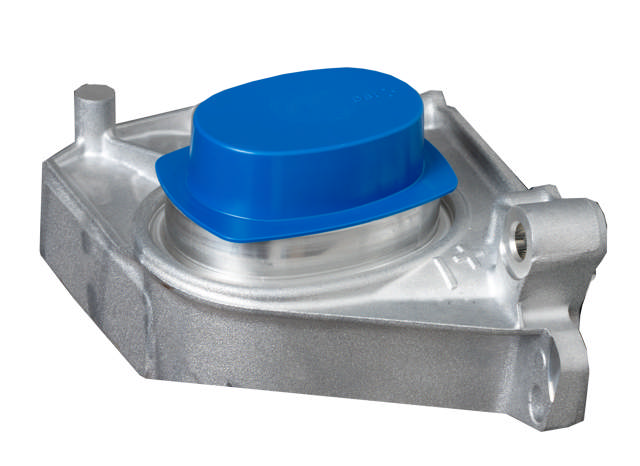

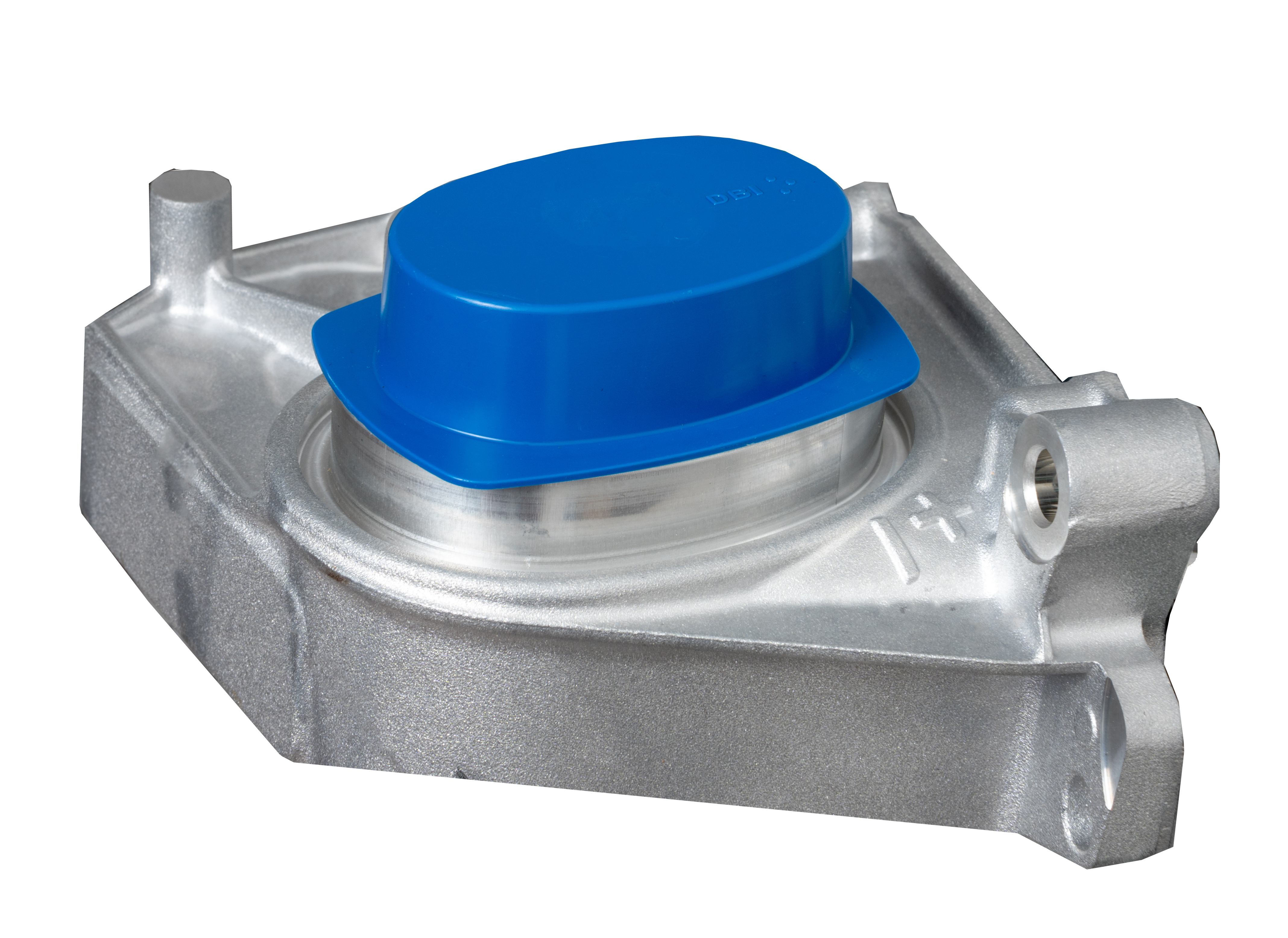

Reliable protection for high-voltage Rosenberger connectors.
This EH range covers plugs in round or square designs, with or without handles. Three internal ribs protect against dust, liquids, vibration, and mechanical damage- ideal for safeguarding high-voltage sockets and pins.
Ideal for these applications:
All benefits
Glove-friendly
easy grip for quick handling
Strong seal
protects against dust, vibration, and damage
Versatile fit
supports major HV connector systems
|
|
CO2
|

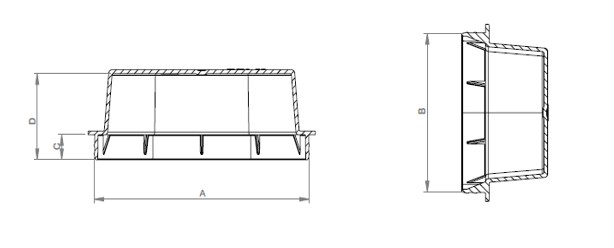

A
mm
|
B
mm
|
C
mm
|
Suitable For Connector Family
|
|---|
| EH0673A-BA90A | Blue | LLDPE | 0 | 67.68 | 46.8 | 7 | HVS 240 |
|
| EH0808A-BA90A | Blue | LLDPE | 0 | 81.18 | 52.69 | 6.8 | HVS 420 |
|
