Product no. X0025

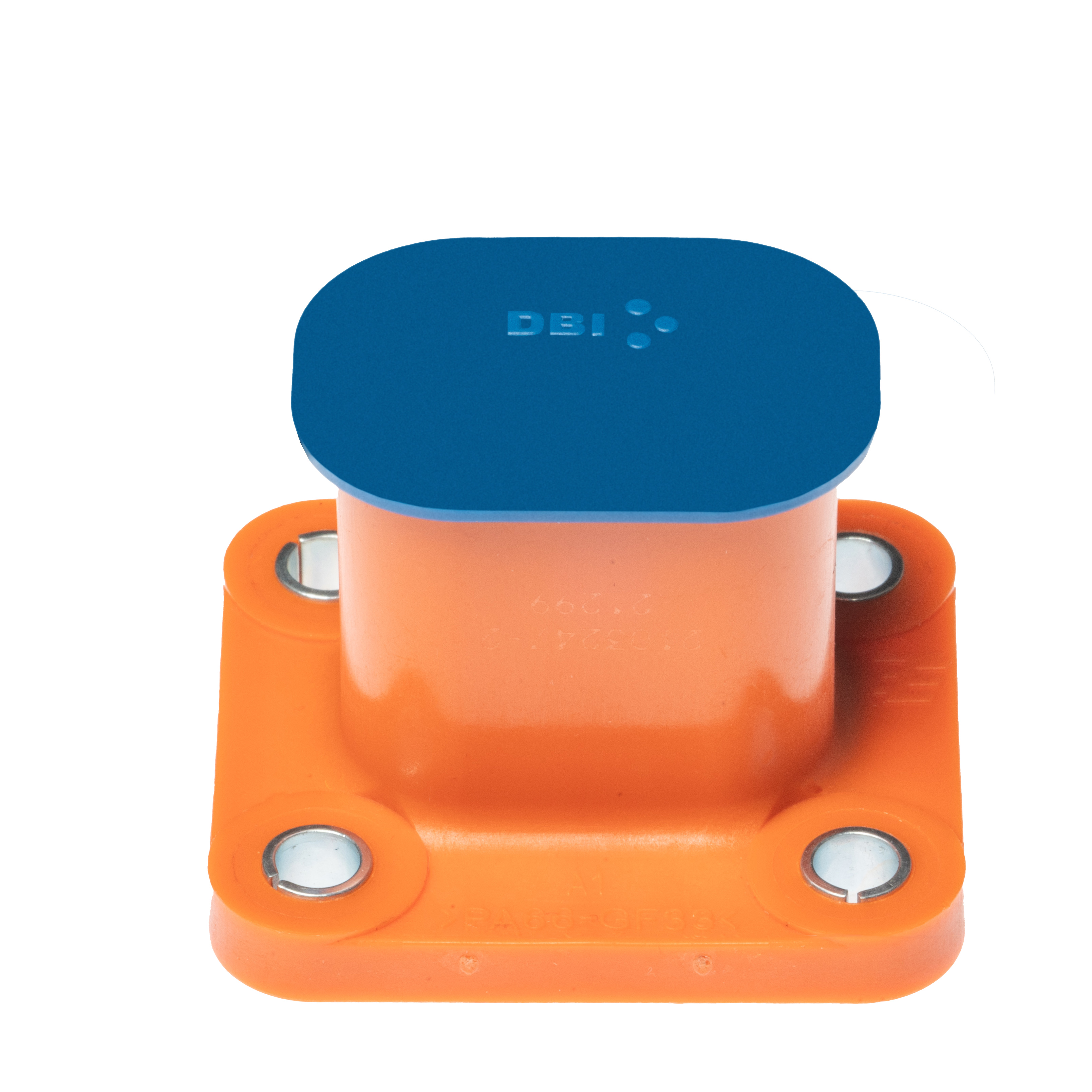

HV Solution for TE Connectors (EH)
Reliable protection for high-voltage TE Connectivity connectors.
This EH range covers plugs in round or square designs, with or without handles. Three internal ribs protect against dust, liquids, vibration, and mechanical damage- ideal for safeguarding high-voltage sockets and pins.
Ideal for these applications:
All benefits
Glove-friendly
easy grip for quick handling
Strong seal
protects against dust, vibration, and damage
Versatile fit
supports major HV connector systems
|
|
CO2
|

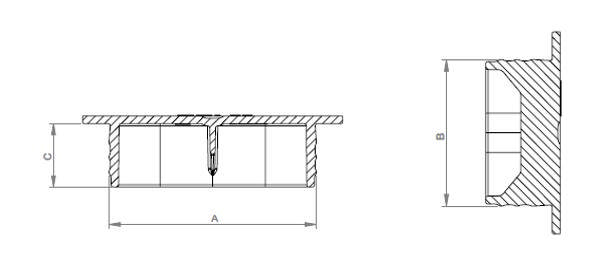

A
mm
|
B
mm
|
C
mm
|
|---|
| EH0275B-AA90B | Blue | Recycled LDPE | 0 | 27.84 | 18.64 | 8.5 |
|
| EH0477B-AA90B | Blue | Recycled LDPE | 0 | 47.94 | 30.1 | 8.5 |
|
| EH0523B-AA90A | Blue | Recycled LDPE | 0 | 51.5 | 32.9 | 23 |
|
