Product no. X0046

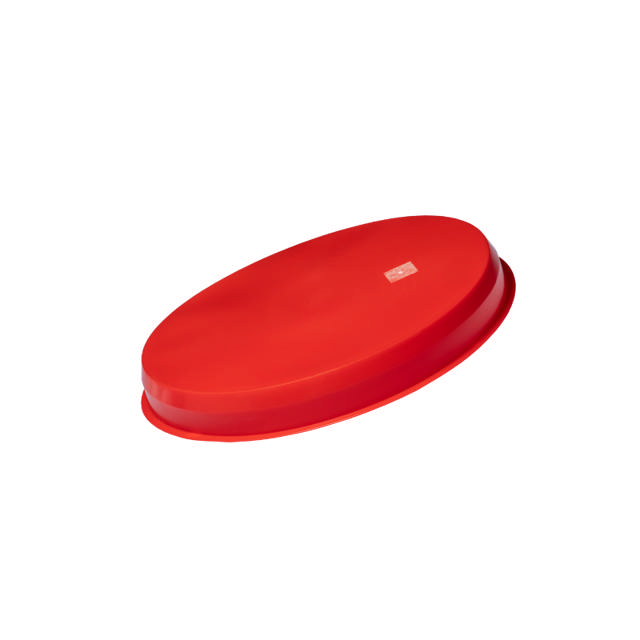

Parallel Plugs Type (NC)
External protection for fittings and ports, designed for easy handling and efficient use of materials thanks to its reduced-weight construction.
Ideal for these applications:
All benefits
Automotive-ready
protects fittings and ports
Lightweight design
saves material and handling effort
Secure sealing
for external port protection
|
|
CO2
|

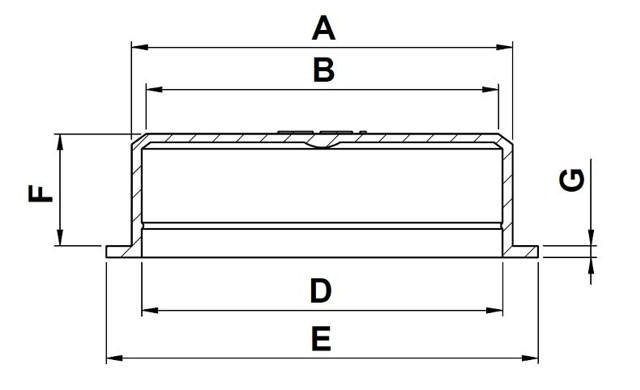

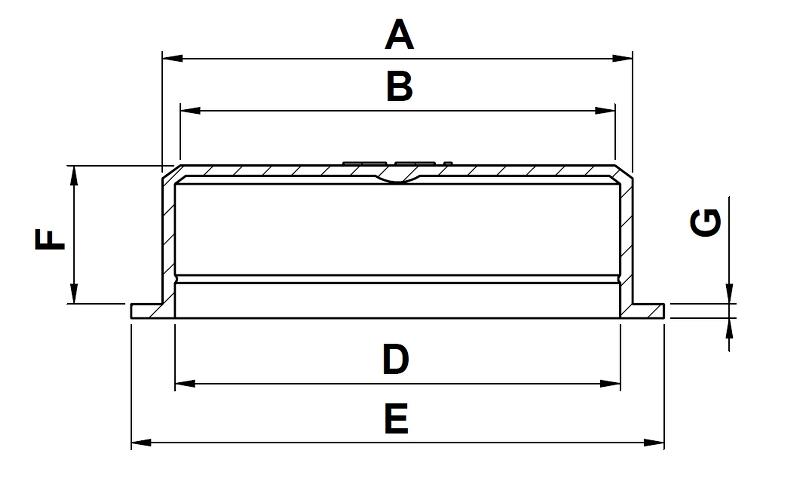

A
mm
|
B
mm
|
D
mm
|
E
mm
|
F
mm
|
G
mm
|
|---|
| NC0130Z-AA10B | Natural | Recycled LDPE | 0 | 13 | 0 | 11.9 | 16.9 | 7.7 | 0 |
|
| NC0360A-AV20A | Yellow | LDPE | 0 | 36 | 33.3 | 34.1 | 40.8 | 10.6 | 1.1 |
|
| NC0520A-AA00A | Red | Recycled LDPE | 0 | 52 | 47.1 | 50.5 | 58 | 10.7 | 1 |
|
| NC0773A-AA00A | Red | Recycled LDPE | 0 | 79.6 | 79.6 | 76.3 | 87.5 | 14 | 1.3 |
|
| NC3120L-AA00D | Red | Recycled LDPE | 0 | 311.8 | 307.2 | 307.6 | 326.2 | 38.3 | 1.2 |
|
| NC3321L-AA00A | Red | Recycled LDPE | 0 | 326.3 | 317.2 | 322.4 | 340.2 | 38.8 | 1.2 |
|
| NC3540L-AA00A | Red | Recycled LDPE | 0 | 351.9 | 347.8 | 347.2 | 366.5 | 38.5 | 1.2 |
|
