Product no. X0055
Threaded Plugs (TG)
Ideal for hydraulic units, engine components, and powertrain systems. The notched flange design prevents paint membrane formation during electrostatic powder painting, ensuring a smooth finish.
Ideal for these applications:
All benefits
Paint-ready
notched flange avoids paint bridging
Tool access
hex shape for easy mount and removal
Versatile sealing
washer and O-ring options available
|
|

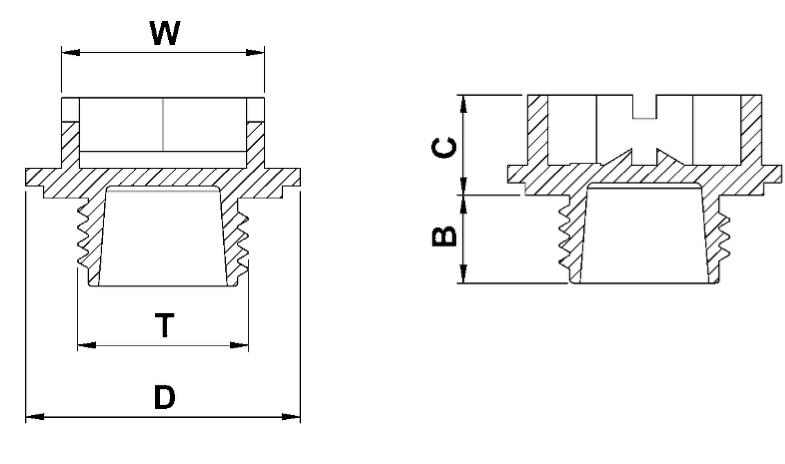

CO2
|
B
mm
|
C
mm
|
D
mm
|
Fits thread
|
W
mm
|
|---|
| TG1101A-GA10A | Natural | PA66 | 0 | 10 | 7.5 | 20 | UNF 7/16 - 2 | 1717 |
|
| TG1101C-GA10A | Natural | PA66 | 0 | 10 | 7.5 | 20 | UNF 7/16 - 2 | 1717 |
|
| TG1401A-JA10A | Natural | PA66 | 0 | 8.4 | 7.4 | 23 | UNF 9/16 - 1 | 1717 |
|
| TG1401C-JA10A | Natural | PA66 | 0 | 8.4 | 7.4 | 23 | UNF 9/16 - 1 | 1717 |
|
